SKU
ACP5500HMFD220H

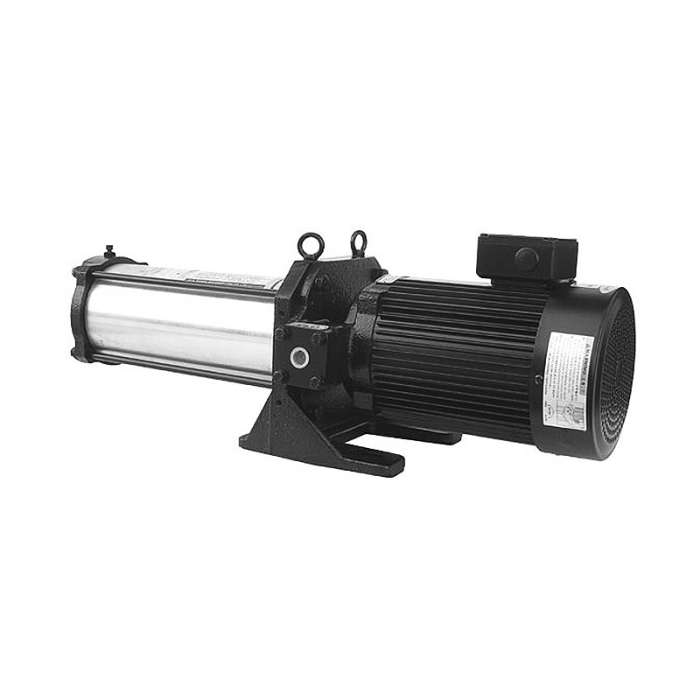

Part : Coolant Pump

Model Number : ACP- 5500HMFD 220H

Manufacturer : A-Ryung

Delivery & Return

Product Description

ACP-HMFD series pumps are high head multi-staged centrifugal pumps for use on large machines with high precision & efficiency.

This pump is designed not to transfer the temperature of the motor directly to the pump, so the oil temperature can stay constant.

Product Specifications

Specifications
TypeACP-5500HMFD 220H
PumpDischarge Volume20 /min
Head155/220 m
In-let & Out-let1 1/4" PS
Immersion Depth470 mm
MotorOut-put5500 W
Frequency Voltage50/60 Hz
Voltage220/380/440 V
Current23.1/13.4/11.6 A
Weight76 kg

External Dimensions

ACP- 5500HMFD 280H

Performance Range

The liquid should be filled the up and down limit line indicated the pump body side. But that the maximum level of liquid keeps below 20mm from tank top is better. If the liquid is over the maximum limit line, it happens the liquid dispersion. Reversely, the minimum liquid causes noise by air mixing or low performance of sucking particles from under tank. The discharging volume is sharply changeable by the viscosity. If the viscosity is high, the motor increases heat. So the viscosity of cutting oil keeps under 32 cSt. This pump is low head so that it can't discharge due to pipe resistance when the check valve is installed.

TYPELL1L2L3TLPE
5500HMFD 220H47533352425898PS 3/4 "
