SKU
ATP-216HAVB
$900.00

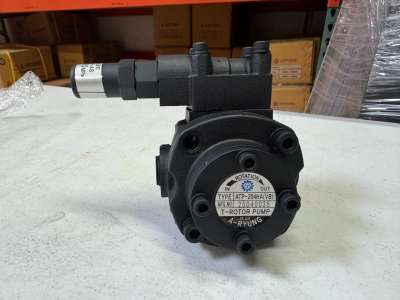

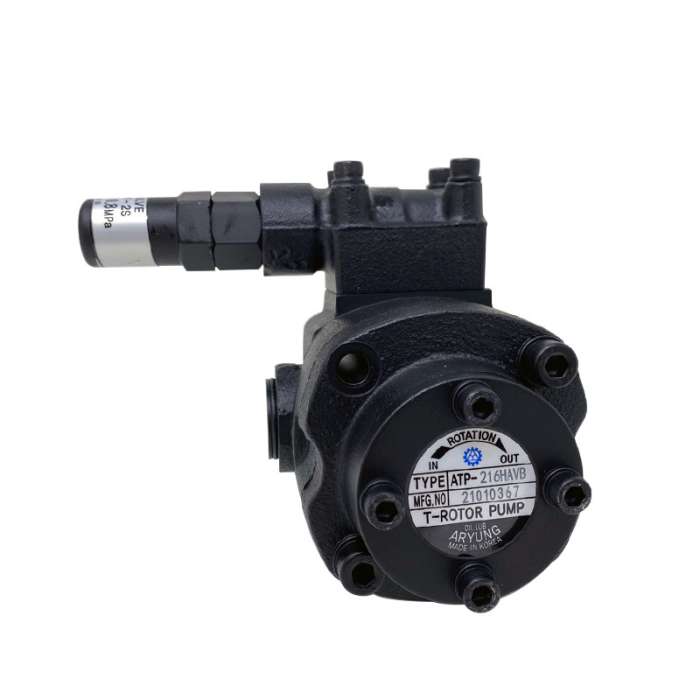

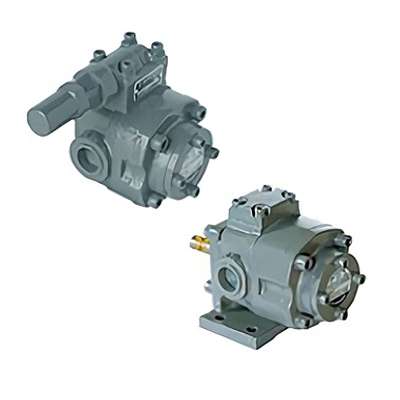

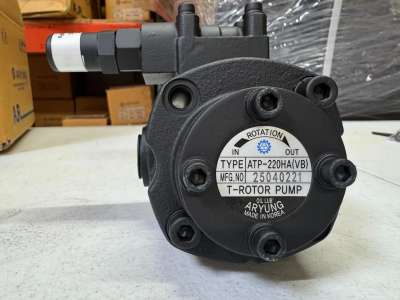

Part : T-ROTOR Oil Pump

Model Number : ATP-216HAVB

Manufacturer : A-Ryung Machinery Industries

Delivery & Return

Product Description

  • The ATP-HAVB pumps are designed with double oil seals for long term use in high temperatures below 180°C. The oil seals are made from FKM Material. This pump can be ordered with a relief valve to control pressure to avoid overloading the motor and pump operation. This pump is used for transferring oil and fuel, lubrication of machine and tools, and hydraulic applications.

Overview of the pump

T-ROTOR describes the path followed by a point on a circular plate where it undergoes a rolling contact motion around a fixed circle without slipping. The trajectory created by the outer rolling motion of the disk, beyond its circumference, is known as an Epi-trochoid. The trajectory resulting from the inner rolling motion is referred to as a Hypo-trochoid.

The T-Rotor Pump is an internal gear pump consisting of a pair of internal and external gears manufactured based on the Trochoid Curve.

How it Works

The T-ROTOR pump operates by creating a chamber of space. The T-ROTOR has a pair of teeth that is designed according to the Trochoid Curve principle, which undergo inward rolling motion. It is a pump that discharges.

The In-Rotor has one fewer gear tooth than the Out-Rotor and rotates eccentrically at a specific distance from the external gear.

The pump is designed to forcibly draw in and discharge fluid by maintaining constant space between the external teeth. The space is constantly large or small. The motion of the rotor is depicted in the image below.

Features of the pump

1. High suction pressure and high mechanical and volumetric efficiency.

2. Because the internal and external gears make rolling contact motion by trochoid curve, the relative speed is lower than that of the gear pump. As a result, there is reduced tooth wear and discharge pulsation.

Because the internal and external gears make rolling contact motion using the trochoid curve, the relative speed is lower than that of the gear pump. As a result, there is reduced wear to the tooth and discharge pulsations are less.

3. Its straightforward design makes it easy to disassemble, assemble, and repair. In addition, this oil pump is smaller than other gear pumps that share a similar capacity, has a longer service life, and has more discharge per rotation.

4. Unlike gear pumps, the T-Rotor pump does not require a Cresent-Shaped Spacer. It also has various applications in areas such as lubrication, hydraulics, and transportation.

5. Since it always rotates at a single point of contact, the rotation can range from low to high speeds (300 to 3000 RPM).

Product Specifications

Specifications
TypeATP-216HA
cm³/rev19.8
Discharge Volume1,500 rpm24.3
1,800 rpm29.1
Max Pressure3 Mpa
Permissive Rotation300 - 1,800 rpm
Net WeightHA HAF3.8 kg
HAVB HAVD4.2 kg

ApplicationMaterial

Fluid : Oils

Kinematic viscosity (40℃ standard) : 20 ~ 220 cSt

Use temperature

NBR : 80℃ below

FKM : 180℃ below

Pump body : Cast iron
Port housing : Cast iron
Pump cover : Cast iron
Bearing : #6202zz, 6301zz
Shaft : Steel
Rotor : Powder steel
Oil-seal : NBR, FKM(Option)
- Ø15×Ø35×7t,
- Ø17×Ø30×7t
Relief valve : Cast iron etc.

Performance Range

A-Ryung T-ROTOR Oil Pump ATP-216HAVB Performance Range chart

External Dimensions

A-Ryung T-ROTOR Oil Pump ATP-216HAVB External Dimension diagrams
