Availability: Shipping directly from South korea. Import duties are included
Estimated Delivery: 21 Days
SKU
702RAA6008KG
$680.00

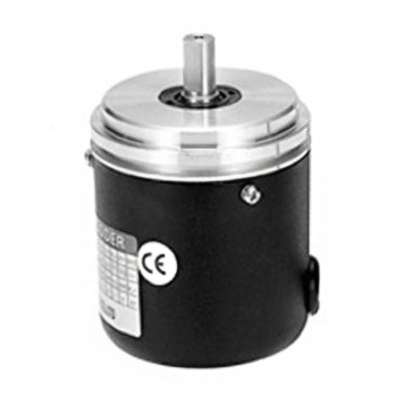

Part : Rotary Encoder RAA-60-0008PDG
Type : FFG DMC Machine

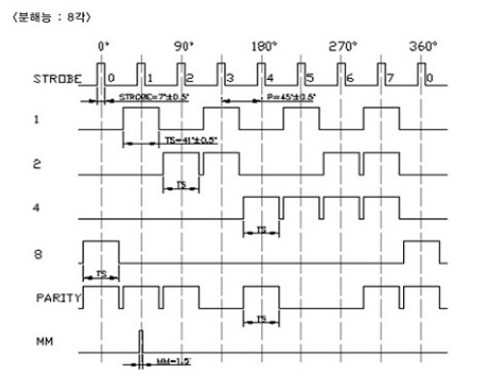

Resolution : Binary code (08 degrees)
Manufacturer Part Number : 702RAA6008KG
Manufacturer : Kwangwoo
Categories:
Product Description
Rotary Encoder is a sensor that converts mechanical movement into electrical signal (pulse)
Product Specifications
| Electrical Specifications | |
|---|---|
| Resolution | 8 / 10 /12 P/R |
| Supply Voltage | DC 24V |
| Current Consumption | 80mA Max. |
| Response Frequency | 20 kHz Max. |
| Rising Time | 3 μs Max. |
| Falling Time | 3 &mug;s Max. |
| Mechanical Specifications | |
|---|---|
| Max. Rotating Speed | 5,000 RPM |
| Starting Torque | 200gf˙cm2 Max. at 25°C |
| Moment of Inertia | 30gf˙cm Max. |
| Allowable Shaft Load - Radial | 5kg Max. |
| Allowable Shaft Load - Axial | 5kg Max. |
| Vibration Resistance | 10~55Hz / 1.5mm |
| Shock Resistance | 50G/11m sec |
| Operation Temperature Range | -10°C - 60°C |
| Storage Temperature Range | -20°C - 80°C |
Rotary Encoder Kwangwoo 08 Station
Options
| Availability | Shipping directly from South korea. Import duties are included |
|---|---|
| Estimated Delivery | 21 Days |
| Shipping For Product | 100.000000 |
| Calculate Shipping | Per Product Quantity |
| Enable Shipping Per Product | Yes |
| Brand | Kwangwoo |
| Enable Request a Quote | No |
