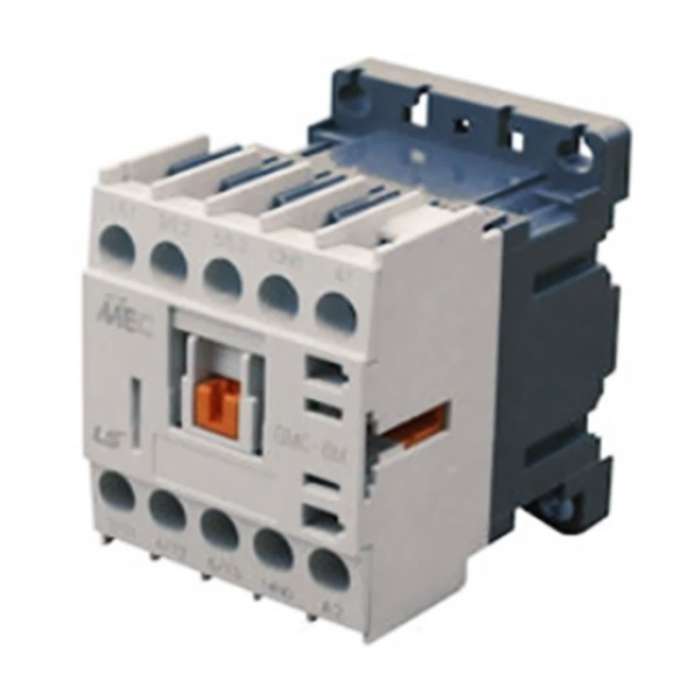

Part : DC Mini Circuit
Part Number : C54324-1
Specifications : GMD-9M-DC24V
Manufacturer : LS Electrics
Machine Type : Kwangrim Oil Chiller CIL Series, CIPL Series, CIW Series, CIC Series, and CHIL Series.
Product Description
- • Due to a low coil VA, it can be driven directly from a PLC.
- • This CE Marking compliant product has passed certification testing.
- • Terminal cover is standard equipment.
- • This is a UL-compliant product for your peace of mind.
- • Enables both screw mounting and DIN rail mounting.
Product Specifications
| Specifications | ||
| Motor Capacity Thermal Nominal 220 VAC | 1.5/7 Kw/A | |
| Auxiliary Contact | 1a | |
| Dimension Length | 58 mm | |
| Dimension Thickness | 69 mm | |
| Coil Rated Voltage | DC24 V | |
| Representative Standards | CE | |
| Dimension Width | 45 mm | |
| RoHS | 6 | |
| Frame Size | 9 AF | |
| Coil Current | 0.05A | |
| Motor Capacity AC3 | 200~240V | 2.2 kW 9A |
| 380~440V | 4 kW 9A | |
| 500~550V | 3.7 kW 6A | |
| 690V | 4 kW 5A | |
| Model | GMD-9M-DC24V | |

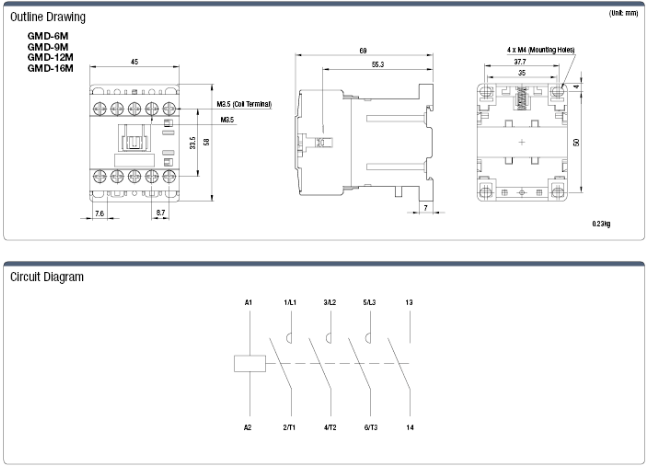

Product Drawing
| Product Name | LS Mini Circuit GMD-9M-DC24V |
|---|---|
| Shipping For Product | 0.000000 |
| Calculate Shipping | Per Product Quantity |
| Enable Shipping Per Product | Yes |
| Brand | LS Electric |
| Enable Request a Quote | No |
