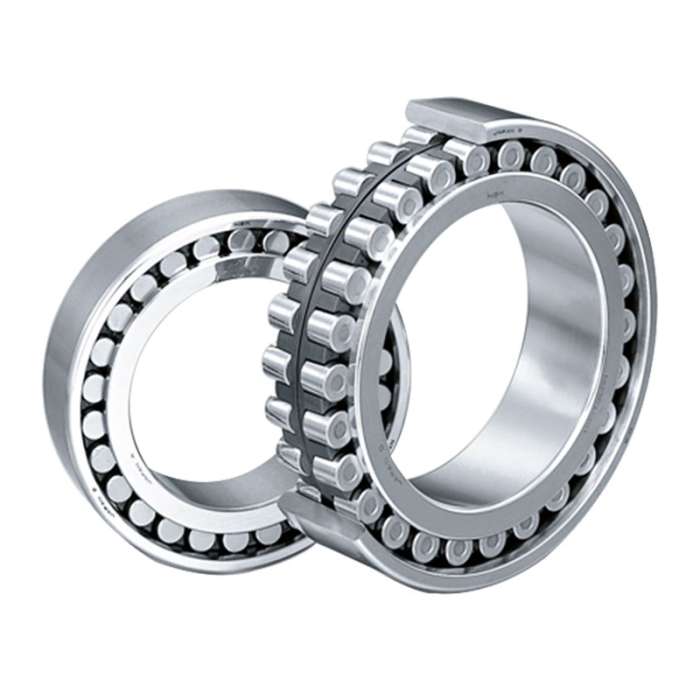

Parts : Cylindrical Roller Bearing
Part Number : NN3024MBKRCC9P4 (593NN3024K0INS)
Dimensions : 120 mm x 180 mm x 46 mm
Manufacture r: NSK
Categories:
Product Description
If the load on cylindrical roller bearings becomes too small during ioeration, slippage between the rollers and raceways occurs, which may result in smearing.
This is common with large bearings since the weight of the rollers and cafe is high.
If very small bearing loads are expected please consult with us for selection of the bearings.
Product Specifications

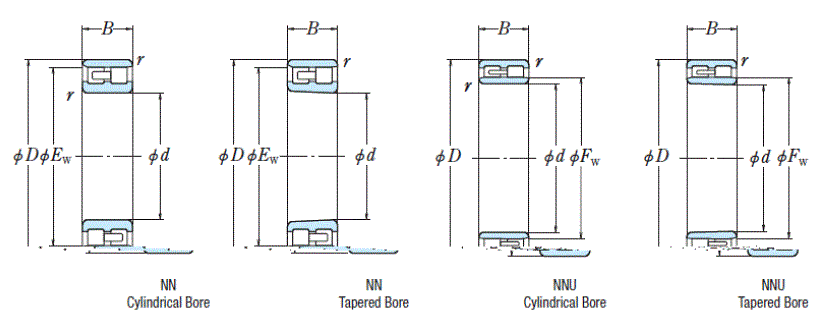

| Specifications | ||
| Boundary Dimensions | d | 120 mm |
| D | 180 mm | |
| B | 46 mm | |
| r min | 2 mm | |
| Fw | - | |
| Ew | 162 mm | |
| Basic Load Ratings | Cr | 239 kN |
| Cor | 405 kN | |
| Cr | 24,400 kgf | |
| Cor | 41,500 kgf | |

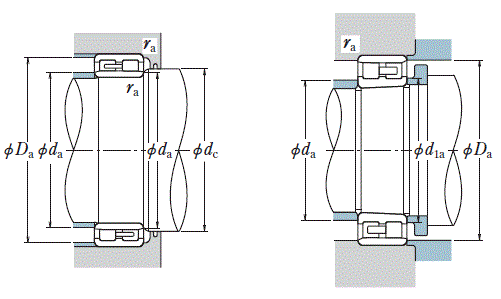

| Specifications | ||
| Abutment and Fillet Dimensions | da | 132 mm |
| d1a | 136 mm | |
| dc mic | - | |
| Da | 167 mm | |
| Ra max | 2 mm | |
| Mass | Approx. | 4.04 kg |
| Product Name | NSK Cylindrical Roller Bearing NN3024MBKRCC9P4 |
|---|---|
| Shipping For Product | 0.000000 |
| Calculate Shipping | Per Product Quantity |
| Enable Shipping Per Product | No |
| Brand | ASM enterprise |
| Enable Request a Quote | No |
