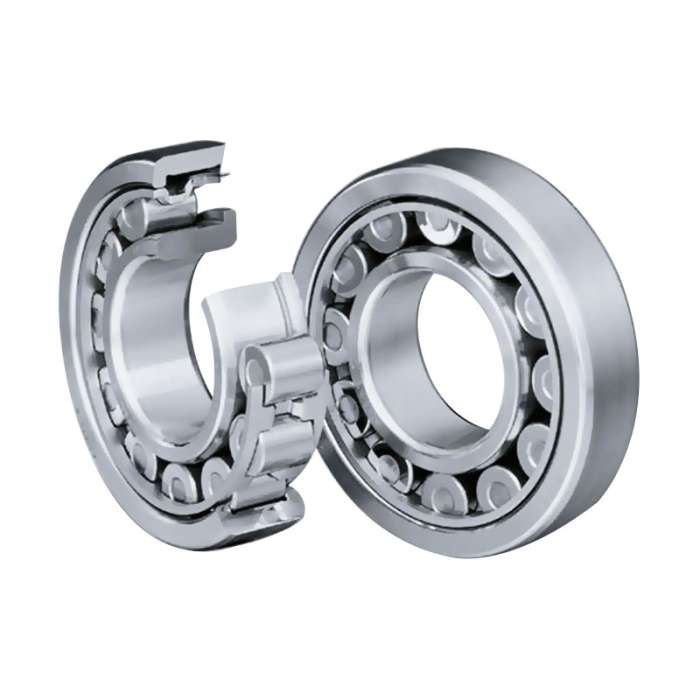

Part : Tapered Bore Radial Bearing
Part Number : NN3036MBKRCC9P4
Removable Outer Ring : Straight
Dimensions : 170 mm x 280 mm x 75 mm
High Capacity
Type : Cageless
Manufacturer : NSK
Categories:
Product Description
Bearings with molded polyamide cages (ET type) can be used continuously at temperatures between -40 and 120℃.
If the bearings are used in gear oil, nonflammable hydraulic oil or ester oil at a high temperature over 100℃, please contact NSK beforehand.
Product Specifications
| Specifications | ||
| Bearing Numbers | NN3036K | |
| Boundary Dimensions | d | 180 mm |
| D | 280 mm | |
| B | 75 mm | |
| r (min.) | 2.1 mm | |
| Ew | 255 mm | |
| Basic Load Ratings | Cr | 565000 N |
| C0r | 995000 N | |
| Limiting Speeds (min-1) | Grease | 2000 |
| Oil | 2400 | |
