Availability:
Shipping directly from South korea. Import duties are included
Estimated Delivery:
21 Days
SKU
EUNIE0005
$800.00

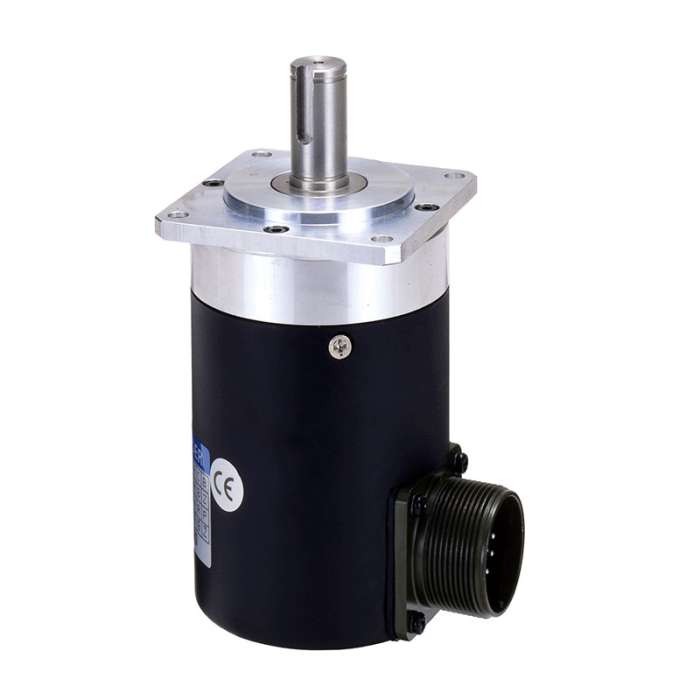

Part : Rotary Encoder RIB-60-1024VLI
Heavy duty rigid type
Long distance signal transmission
Max RPM : 8,000 RPM
Machine Type : Turning Centers
Manufacturer : Kwangwoo
Categories:
Product Description
Rotary Encoder is a sensor that converts mechanical movement into electrical signal (pulse)
Product Specifications
| Electrical Specifications | ||
|---|---|---|
| Resolution | 300/1024 P/R | |
| Supply Voltage | Line Drive | DC + 5V |
| Totempole | DC + 5V ~ 28V | |
| Current Consumption | 150 mA Max. | |
| Max. Response Frequency | 136 kHz Max. | |
| Rising Time | Line Drive | 0.3 µs Max. |
| Falling Time | Totempole | 3 µs Max. |
| Mechanical Specifications | ||
|---|---|---|
| Maximum Rotating Speed | 8,000 RPM | |
| Starting Torque | 300gf·cm Max. at 25°C | |
| Moment of Inertia | 250gf·sq cm Max. | |
| Allowable Shaft Load | Radial | 5kg Max. |
| Axial | 5kg Max. | |
| Vibration Resistance | 10∼55Hz / 1.5mm | |
| Shock Resistance | 50G/11msec | |
| Operation Temp. Range | -10°C ∼ +60°C | |
| Storage Temp. Range | -20°C ∼ +80°C | |
| Protection | IP50 | |

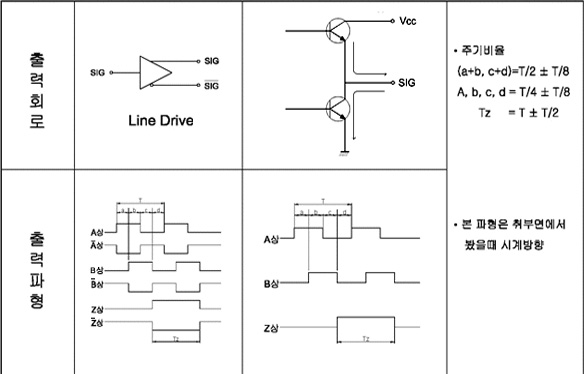

Output

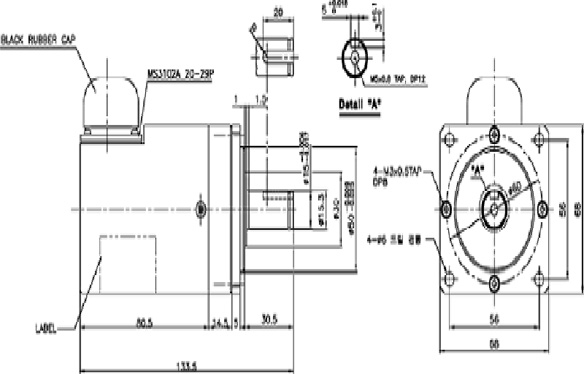

Product Drawings
| Product Name | Kwangwoo Rotary Encoder RIB-60-1024VLI |
|---|---|
| Availability | Shipping directly from South korea. Import duties are included |
| Estimated Delivery | 21 Days |
| Shipping For Product | 100.000000 |
| Calculate Shipping | Per Product Quantity |
| Enable Shipping Per Product | Yes |
| Brand | Kwangwoo |
| Enable Request a Quote | No |
