Part : Manual Puls Generator RIM 80 /MPG Handle

Applicable for all 80 mm Dia Manual Pulse Generator

Applicable to 80 mm Dia (6mm Shaft)

Black 100PPR

6 Termina

Electronic CNC Hand Wheel

Delivery & Return

Product Description

Manual Pulse Encoder Generator

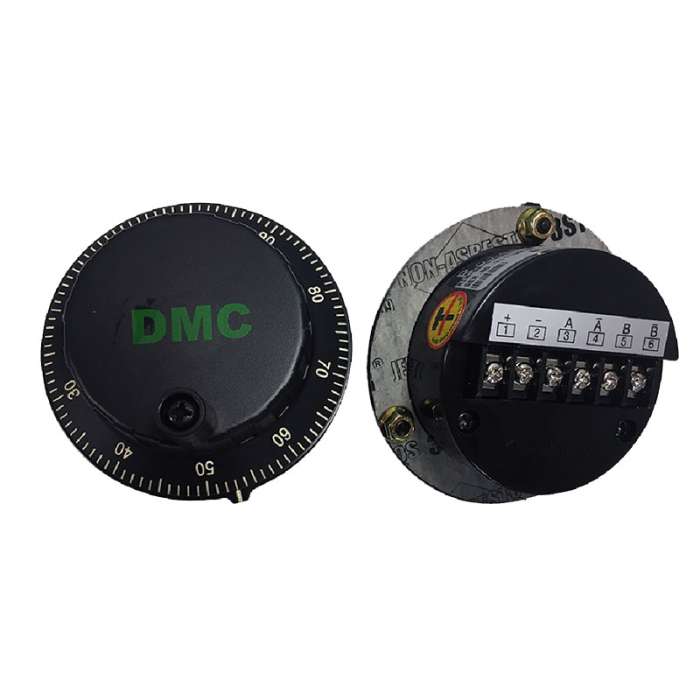

DMC logo is marked as a photo.

Note : The color of the item may vary slightly due to photography and your screen settings.

Product Specifications

Electrical Specifications
Resolution100 P/R
Supply VoltageDC+4.75V~28V (Line drive DC +5V)
Current Consumption2 Type60mA
2D Type150mA
Output VoltageH2.5V Above
L0.5V Under
Max. Response Frequency5 kHz Max.
Output ModeVoltage OutputOpen CollectorLine Drive


Mechanical Specifications
Maximum Rotating Speed600 RPM
Starting Torque0.2~0.6gf·cm
Allowable Shaft LoadRadial1kg Max.
Axial2kg Max.
Vibration Resistance10∼55Hz / 1.5mm
Shock Resistance50G/11msec
Operation Temp. Range2 Type-10°C ∼ +60°C
2D Type0°C ∼ +60°C
Storage Temp. Range-30°C ∼ +80°C
