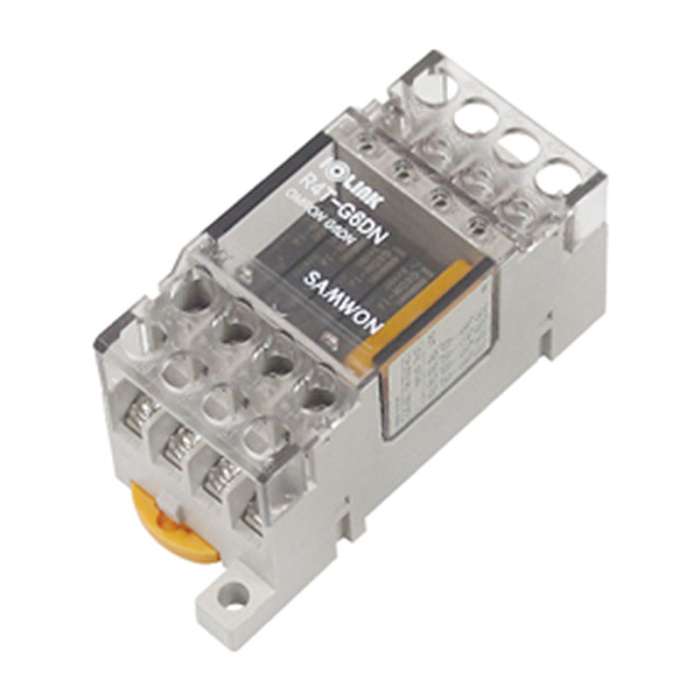

Part : Iolink R4T-G6DN Relay Board (R4T16PS)
Manufacturer : Samwon ACT
Product Description
- 4-points, equipped with OMRON G6DN relay
Features
Equipped with slim-type G6DN relay with surge breakdown voltage of of 6,000V
Easy to check operation status by attaching contact LED
Easy to work with a structure for DIN rail mounting and screw mounting
Easy maintenance and repair as the relay replacement tool is provided
Easy wiring by using the built-in common bar
Slim-type (width 5㎜), high-reliability relay with impulse withstand voltage
Equipped with a slim-type OMRON relay with impulse withstand voltage of 6,000V
Power relay strong for inductive load
Strong against inductive load due to inducitive load (cosΦ=0.4, L/R=7㎳, 2A)
Product Specifications
Specifications | ||
Model | RT4-G6ND | |
Installation Relay | Omron G6DN-1A 24 VC | |
IO Point | 4 Point (1a*4) | |
Rated Voltage | 24V DC | |
Common | Coil | Individual Power |
Contact | 4P Com. | |
Interface | Coil | Screw Terminal 7.62mm Pitch |
Contact | Screw Terminal 7.62mm Pitch | |

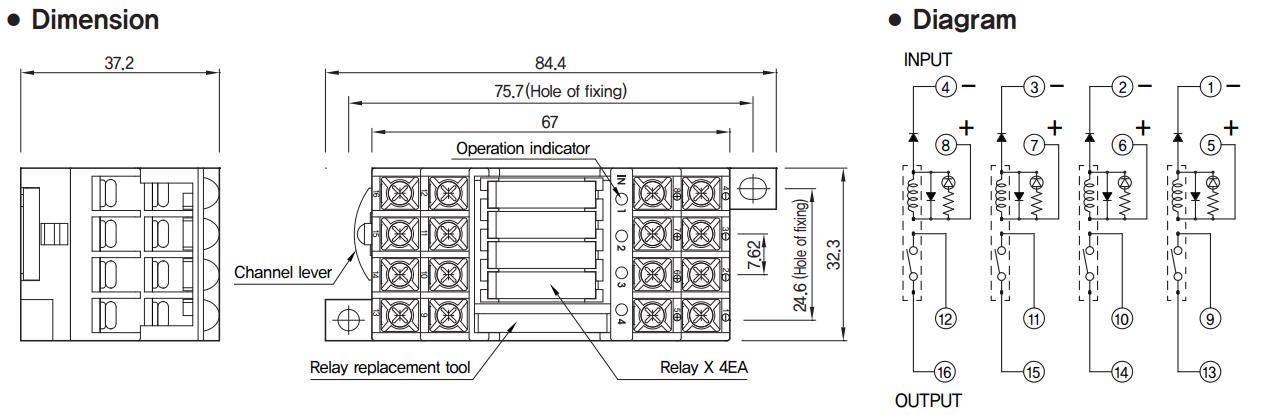

Dimensions | 32.2 x 67.0 | |
Mounting Method | Screw Mounting DIN Rail (Channel) | |
PA Relay Specifications | ||
Item | G6DN-1A 24VDC | |
Contact | Arrangement | SPST-NO (1a) |
Nominal Switching Capacity (Resitive Load) | 5A 250VAC, 5A 30VDC | |
Max. Switching Current | 5A | |
Max. Switching Voltage | 277V AC/ 125V DC | |
Coil | Nominal Voltage | 24V DC |
Pick-up Voltage | 70% max. of rated voltage | |
Drop-out Voltage | 5% min. of rated voltage | |
DC Coil Resistance | 5,236Ω | |
Nominal Operation Power | Approx. 110mW | |
Surge Voltage Between Contact and Coil | 6,000V | |
Initial Breakdown Voltage Between Contact and Coil | AC 3000V, 50/60Hz for 1 min | |
Country of Origin | CHINA | |
Material Specifications | |
Case | Modified PPO |
P.B.C. | Epoxy 1.6t / 2oz |
Applicable Wire | AWG22~16 (1.5mm²/MAX) |
Terminal Screw | M3 X 6L |
Screw Torque | 1.2N·m (12kgf·cm) |
Ambient Temperature | -10°C ~ +50°C |
