Availability: Shipping directly from South korea. Import duties are included
Estimated Delivery: 14 Days
SKU
702MSF30012
$780.00

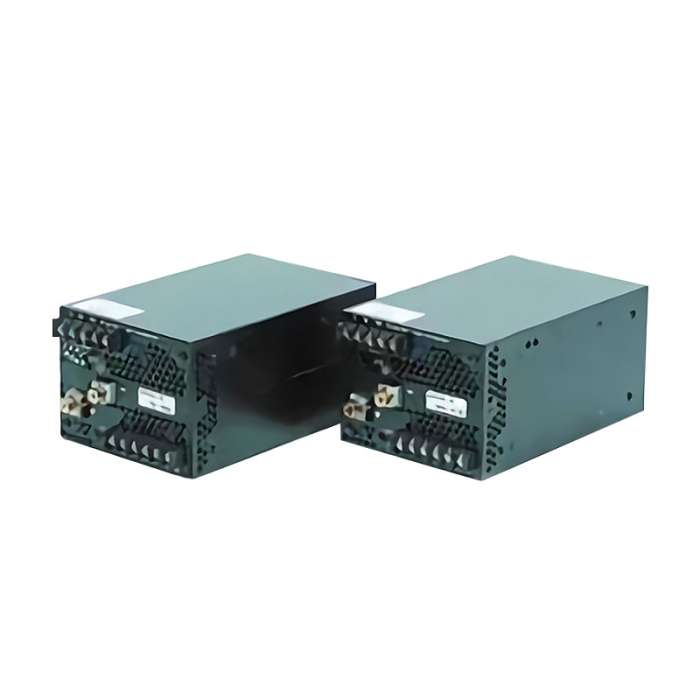

Part : Switching Mode Power Supply MSF 300-12
Manufacturer Part Number : 702MSF30012
Manufacturer : Fine Suntronix. Orient electronics
Categories:
Product Description
• Over current protection
• Over voltage protection
• Complies with FCC Part 15 and EN 5022
• Class A Limits
• Remote Sensing
Product Specifications
| Electrical Specifications | ||||||
|---|---|---|---|---|---|---|
| MODEL | MSF300-24 | MSF300-28 | MSF300-36 | MSF300-48 | ||
| INPUT | VOLTAGE, FREQUENCY | AC100-120V / 200-240V (AC 90~ 132V / 180 ~ 264V or AC 225 ~ 370V), 50/60Hz (47 ~ 440Hz) User Selectable | ||||
| CURRENT [A] | 110V | 7.0 ( I₀=100%) | ||||
| 220V | 3.5 (I₀=100%) | |||||
| EFFICIENCY [%] | 110V | 81 typ | 82 typ | 82 typ | 83 typ | |
| 220V | ||||||
| INRUSH CURRENT | 30A typ (ACIN 110V, I₀=100%), 60A typ (ACIN 220V, I₀=100%) at cold start. | |||||
| OUTPUT | VOLTAGE [V] | 24 | 28 | 36 | 48 | |
| CURRENT [A] | 13 | 11 | 8.5 | 6.5 | ||
| REGULATION, LINE [mV] | 120 Max | 140 Max | 180 Max | 240 Max | ||
| REGULATION, LOAD [mV] | 240 Max | 280 Max | 360 Max | 480 Max | ||
| RIPPLE [mVp-p] | 240 Max | 280 Max | 360 Max | 480 Max | ||
| RIPPLE, NOISE [mVp-p] | 290 Max | 330 Max | 410 Max | 530 Max | ||
| TEMPERATURE DRIFT 0~+50℃ [mV] | 360 Max | 420 Max | 540 Max | 720 Max | ||
| RISE TIME [ms] | 500 max (AC IN 110V, I₀=100%) | |||||
| HOLDING TIME [ms] | 20 typ (AC IN 110V, I₀=100%) | |||||
| PROTECTION CIRCUIT | OVER CURRENT PROTECTION | Works at over 110% of rating and recovers automatically | ||||
| OVER VOLTAGE PROTECTION | Works at 115 ~ 140% of rating | |||||
| ELECTRICALLY ISOLATED | INPUT-OUTPUT | AC 3,000V 1 minute current 20mA, DC 500V 100MΩ (At room temperature & humidity) | ||||
| INPUT-CASE, FG | AC 2,000V 1 minute current 20mA, DC 500V 100MΩ (At room temperature & humidity) | |||||
| OUTPUT-CASE, FG | AC 500V 1 minute current 100mA, DC 500V 100MΩ (At room temperature & humidity) | |||||
| ENVIRONMENT | OPERATING TEMP AND HUMID | -10 ~ +50℃, 20 ~ 90% RH(Non condensing) | ||||
| STORAGE TEMP AND HUMID | -20 ~ +75℃, 20 ~ 90% RH(Non condensing) | |||||
| VIBRATION | 10 ~ 55Hz at 1G, 3 minutes period, 30 minutes along X, Y and Z axis | |||||
| IMPACT | 10G for 20ms once on each X, Y and Z axis | |||||
| SAFETY | SAFETY REGULATION | UL, C-UL, CE | UL, C-UL, CE | UL, C-UL, CE | UL, C-UL, CE | |
| LINE CONDUCTED RF VOLTAGE | Complies with FCC Part15 and EN55022 Class A Limits | |||||
Product Drawing
