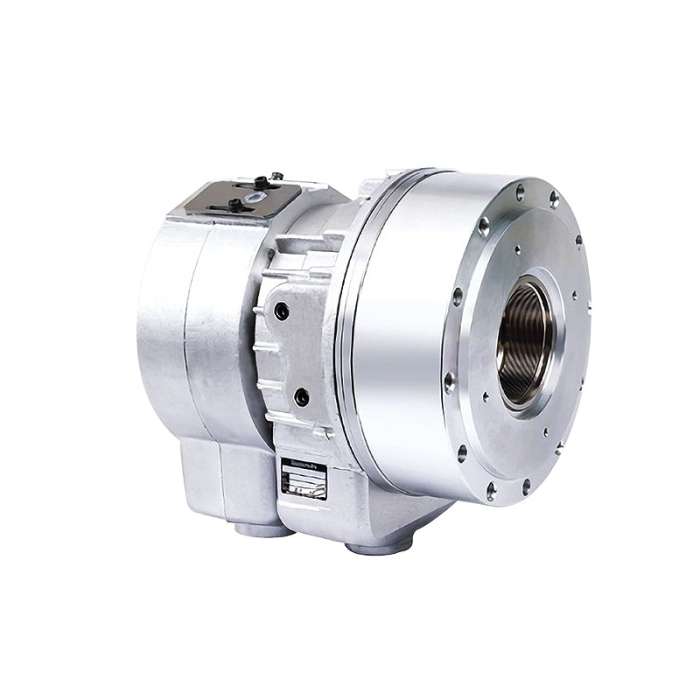

Part : Samchully Rotary Cylinder SH-17068 CC
Manufacturer : Samchully
Part Number : SH-17068 (570YH00811SW)
Product Description
Built-in lock and relief valves prevent damage caused by excessive pressure, and ensures safety during blackouts or loss of power by maintaining pull force.
Application: A high speed, open-center cylinder with a larger bore and lighter than the standard SYH
Product Specifications
| Specifications | |
| Model | SH-17068 CC |
| Available I.D | 68 |
| Piston Dia. | 170 |
| Piston Stroke | 25 |
| Piston Force - Push | 63 (6532) |
| Piston Force - Pull | 59.8 (6060) |
| Max. Operating Pressure | 4.0 (40.8) |
| Max RPM | 5600 |
| Moment of Inertia | 0.65 (0.067) |
| Weight | 16.5 Kg |
| Total Leakage | 4 |

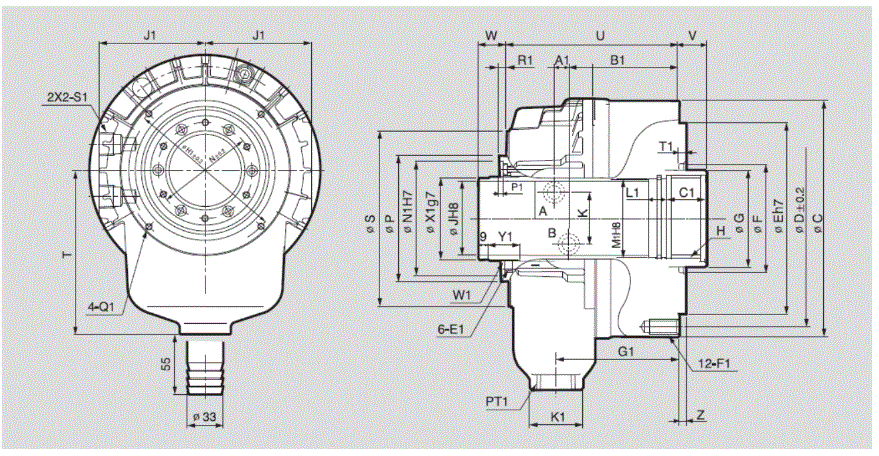

Dimensions
| SH-17068 | C | D | E | F | G | H max | J | K | N | P | S | T | U | V max | V min | W max | W min | Z | A1 |
| 210 | 190 | 160 | 120 | 85 | M75x2.0 | 68 | 48 | 88 | 111 | 154 | 150 | 155 | 25 | 0 | 50 | 25 | 5 | 10 | |
| B1 | C1 | E1 | F1DP | G1 | H1 | J1 | K1 | L1 | M1 | N1 | P1 | Q1 | R1 | S1 | T1 | W1 | X1 | Y1 | |
| 108 | 35 | M6 | M10x20 | 133 | 145 | 97 | 47 | 15 | 70 | 100 | 4 | M6x10 | 7 | PT1/2 | 5 | M74x1.5 | 71.5 | 26 |
