Part : Samchully Rotary Cylinder SH-25011 CC
Manufacturer : Samchully
Part Number : SH-25011 CC (TM18YMP002)
Product Description
Built-in lock and relief valves prevent damage caused by excessive pressure, and ensures safety during blackouts or loss of power by maintaining pull force.
Application: A high speed, open-center cylinder with a larger bore and lighter than the standard SYH
Product Specifications
| Specifications | |
| Model | SH-25011 CC |
| Available I.D | 117.5 |
| Piston Dia. | 255 |
| Piston Stroke | 23 |
| Piston Force - Push | 132 (13390) |
| Piston Force - Pull | 121 (12305) |
| Max. Operating Pressure | 4.0 (40.8) |
| Max. RPM | 3000 |
| Moment of Inertia | 1.9 (0.193) |
| Weight | 50 Kg |
| Total Leakage | 70 |

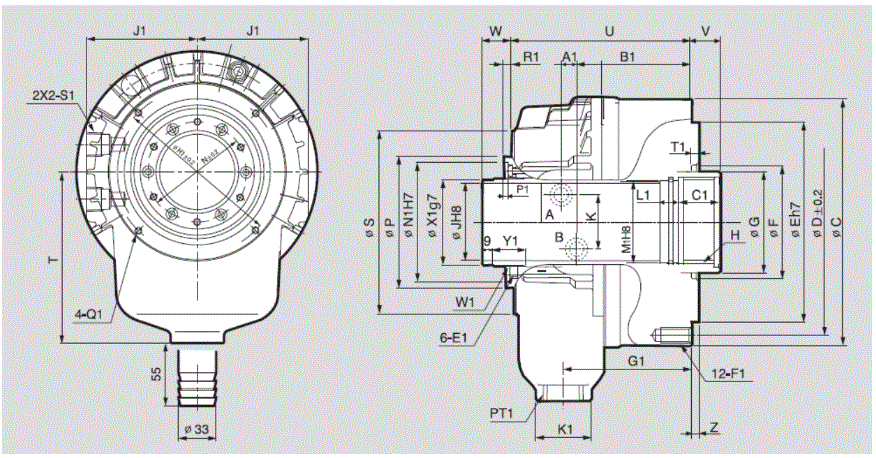

Dimensions
| SH-25011 | C | D | E | F | G | H max | J | K | N | P | S | T | U | V max | V min | W max | W min | Z | A1 |
| 310 | 275 | 230 | 166 | 140 | M130x2.0 | 117.5 | 46 | 138 | 170 | 230 | 107.5 | 231 | 18 | -5 | 48 | 25 | 6 | 19 | |
| B1 | C1 | E1 | F1DP | G1 | H1 | J1 | K1 | L1 | M1 | N1 | P1 | Q1 | R1 | S1 | T1 | W1 | X1 | Y1 | |
| 150 | 45 | M6 | M10x32 | 163.5 | 206 | 140 | 55 | 20 | 123 | 150 | 5.5 | M6x12 | 7.5 | PT1/2 | 6 | M124x2.0 | 122 | 29 |
