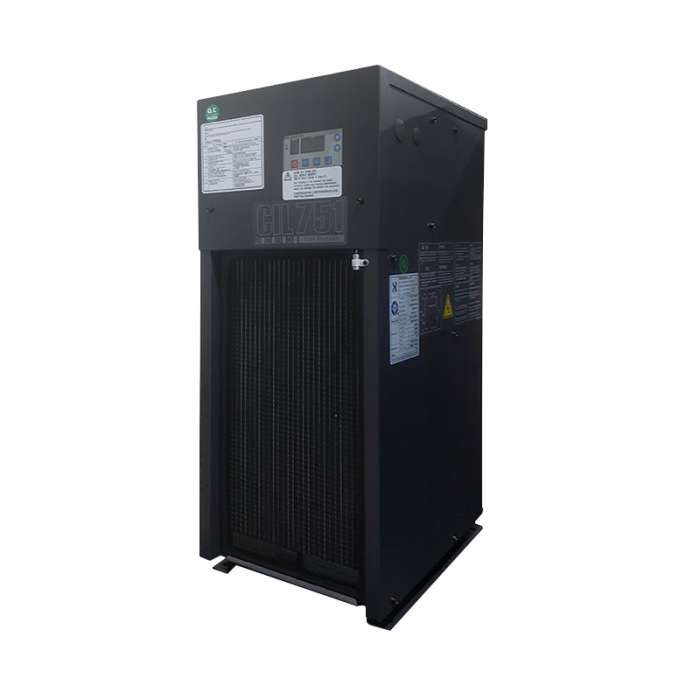

Kwangrim Oil Chiller CIL 751A-C
Manufacturer : Kwangrim
Cooling Capacity: 2,900/3,480 (W) (50/60 Hz)
Compatible Machine Models : Doosan, DN Solutions, WIA, FFGDMC
Categories:
Cross-Compatible Brands & Models
| Airmajor AO-350P | Daikin AKZ329 | Harbor HBO-750PS | Hydtec HKC-75 | Kanto Seiki C300 | Kanto Seiki CL750 |
| Kanto Seiki MLSA-05 | Kanto Seiki MLHA-05 | Kanto Seiki MLLA-05 | Kanto Seiki MLD 7.5 | Kanto Seiki MPD 7.5 | Kanto Seiki MRD 7.5 |
| Kanto Seiki KTC-5 | Kanto Seiki KTC-7.5 | Kanto Seiki KTVM-6A-LM1A | KauKan KO-8PS | MAC 50BSC-FR | MAC 50BSC-FDX-SA |
| MAC 75BSC-FR | MAC 75BSC-FDX-SA | Matsushita NU-YC40 | Matsushita NU-YC60 | Wexten Point CO-06 | Wexten Point CO-6PS |
| Wexten Point CO-08 |
Product Description
Kwangrim Oil Chiller CIL 751A-C is The high accuracy liquid temperature controlling CIL Series chiller covers light to heavy loading.
With a gas-by-pass control, CIL chillers can be used for various cutting purposes including high-precision machining and finishing touches. The CIL A-type is equipped with a dual valve/gas-by-pass PID control with +-0.1 C of continuous minute control, resulting in great machining quality and longer machine life. We also offer E-type, a CIW type and an economical model with a water pump for customers.
CIL 751A-C Oil Chiller Series Options
STEP Controller: Step -by-step temperature control that matches spindle speed variation. Thermal error is minimized, and constant temperature control is possible with one setting.
Heater: With heater attached, warning-up time for a machine is reduced.
Tuned Mass Sensor: The target temperature is based on machine temperature, not the indoor temperature for more accurate control ability.
Tank: Tank can be attached with various volume selection.
NANOCON Drawings
Product Specifications
Specifications
Kwangrim Oil Chiller CIL 751A-C | |
|---|---|
| Dimension | 350 x 450 x 825 (W x D x H) |
| External Color | BLACK |
| Cooling Capacity | 2900/3480 (W) (50/60 Hz) |
| Impressed Power Source | AC200V 50 / 60Hz, AC220V / 60Hz |
| Power Capacity | 14.0A / 5.4KVA |
| Compressor Capacity | 920W |
| Condenser | Air cooling (ALUMINUM CONDENSER) |
| FAN MOTOR | 200W |
| Heat Exchanger | Plate Cooler |
| Circulating Oil | 18 / 21.6 L/min (50/60 Hz) |
| Max.Pressure | 0.5 Mpa |
Connecting Piping | 1/2 x 3/4 (In x out) (RC,PT) |
| Usage Temperature | 5 ~ 45 ℃ |
| Temp. Control | A type : ±0.1 ℃ ~ 0.2 ℃ (Does not include transient deviation) |
| Refrigerant | R410A |
| Temp. Controller | DIGITAL PID Controlled Controller |

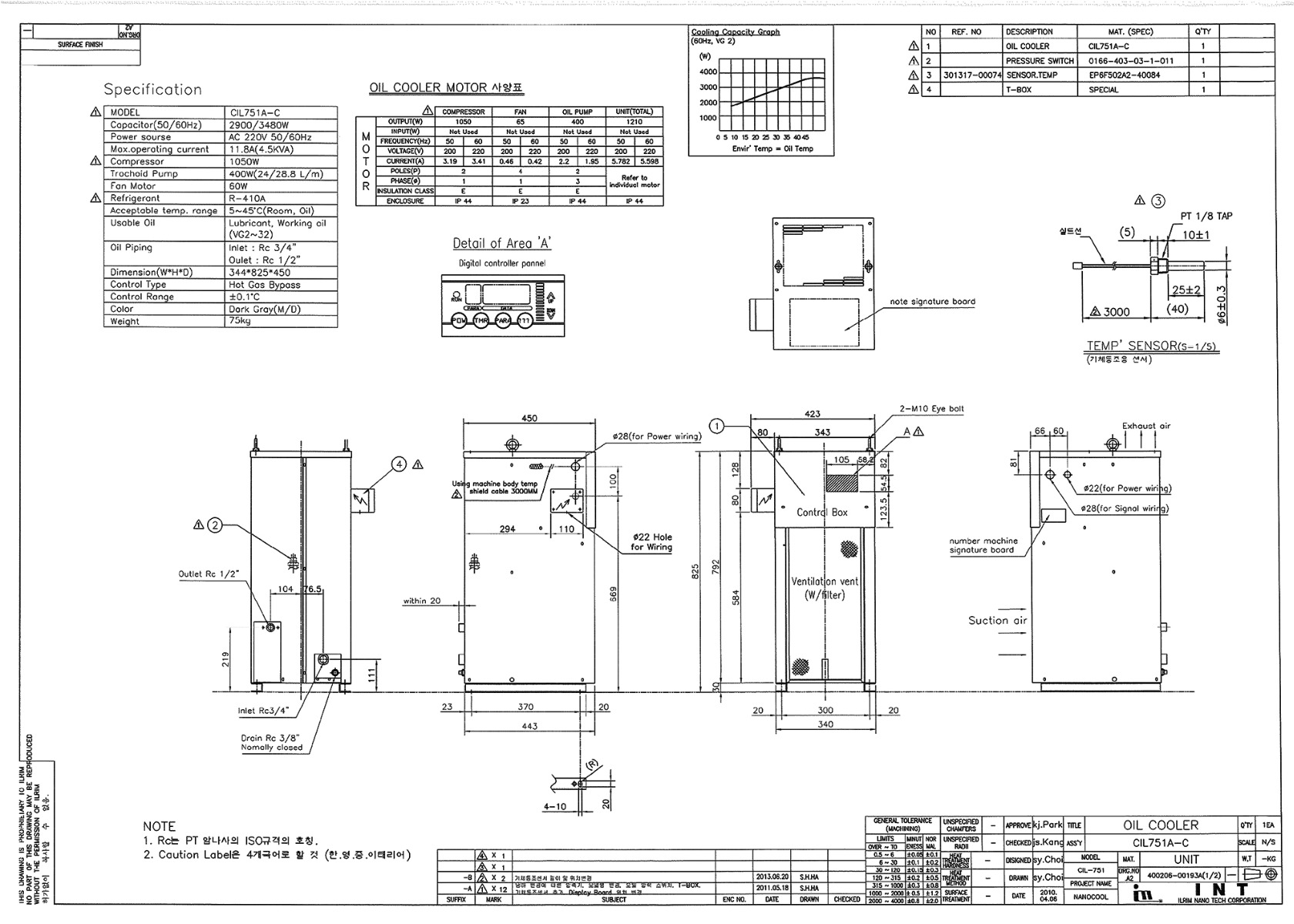

Chiller Dimension Drawings
