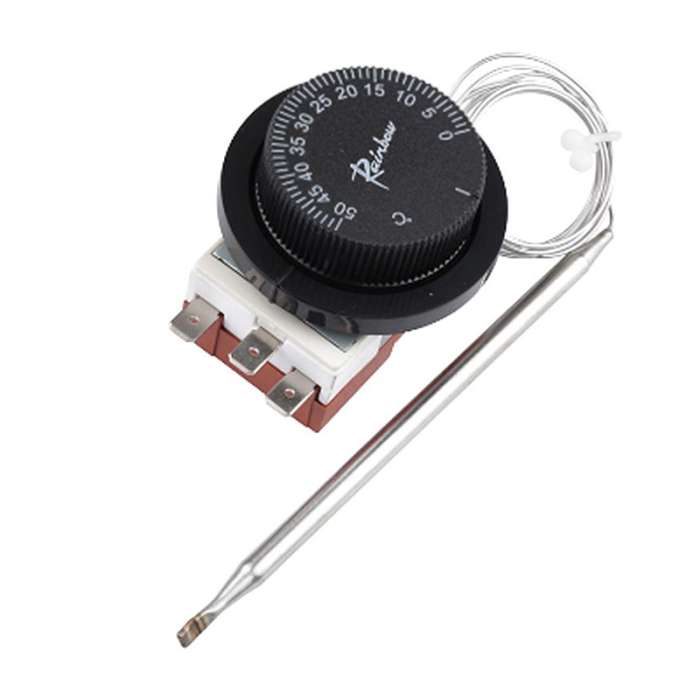

Part : Rainbow Thermostat

Part Number : AC060303

Specifications : TS-050SR

Manufacturer : Rainbow Electronics Co.

Machine Type : Kwangrim Oil Chiller CIL Series, CIPL Series, CIW Series, CIC Series, and CHIL Series.

Delivery & Return

Product Description

  • • Temperature Range: 0-50 degrees Celsius
  • • Temperature Differential: 3 2 degrees Celsius
  • • Probe Length: Ø5 8*127mm
  • • Terminal: S.P.D.T, S.P.S.T
  • • Capillary Length: 1.000mm, Material SUS (1mm)
  • • Product Characteristics: constant temperature control and protection against overheating

Product Specifications

External Dimensions

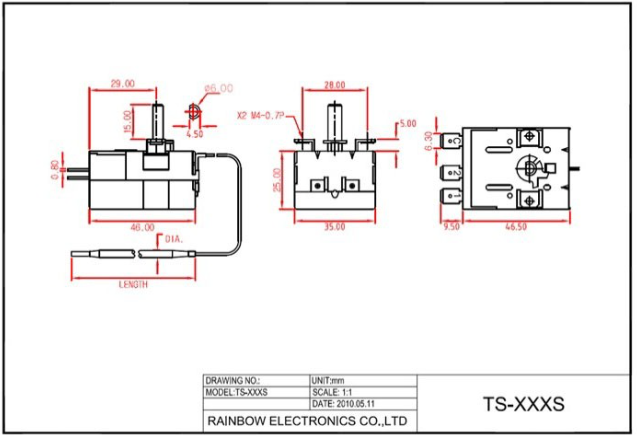

external dimension diagram for the TS-050SR Rainbow Thermostat
