Manufacturer: Kwangrim
Comparable Chiller Models: Daikin AKZ 569
Compatible Machine Models: Doosan, WIA, FFGDMC
Categories:
Product Description

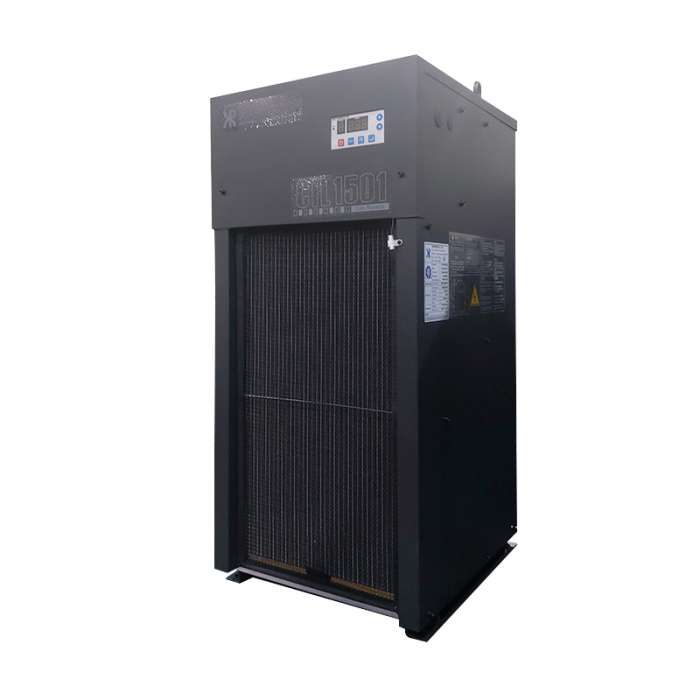

Kwangrim Oil Chiller CIL 1501A-C
The high accuracy liquid temperature controlling CIL Series oil chiller covers light to heavy loads.
With a gas-by-pass control, CIL oil chillers can be used for various cutting purposes including high-precision machining and finishing touches. The CIL A-type is equipped with a dual valve/gas-by-pass PID control with +-0.1 C of continuous minute control, resulting in great machining quality and longer machine life. We also offer the E-type, the CIW type and an economical model with a water pump for customers.
CIL Oil Chiller Series Options
STEP Controller: Step -by-step temperature control that matches spindle speed variation. Thermal error is minimized, and constant temperature control is possible with one setting.
Heater: With heater attached, warning-up time for a machine is reduced.
Tuned Mass Sensor: The target temperature is based on machine temperature, not the indoor temperature for more accurate control ability.
Tank: Tank can be attached with various volume selection.
NANOCON Drawings
Product Specifications
Specifications
Kwangrim Oil Chiller CIL 1501A-C | |
---|---|
Dimension | 445 x 510 x 950 (W x D x H) |
External Color | BLACK |
Cooling Capacity | 4830/5810 (W) (50/60 Hz) |
Impressed Power Source | AC200V 50 / 60Hz, AC220V / 60Hz |
Power Capacity | 19.0A / 7.3KVA |
Compressor Capacity | 2475W |
Condenser | Air cooling (ALUMINUM CONDENSER) |
FAN MOTOR | 100W x 2 |
Heat Exchanger | Plate Cooler |
Circulating Oil | 30 / 36 L/min (50/60 Hz) |
Max.Pressure | 0.6 / 0.5 Mpa |
Connecting Piping | 3/4 x 3/4 (In x out) (RC,PT) |
Usage Temperature | 5 ~ 45 ℃ |
Temp. Control | A type : ±0.1 ℃ ~ 0.2 ℃ (Does not include transient deviation) |
Refrigerant | R410A |
Temp. Controller | DIGITAL PID Controlled Controller |

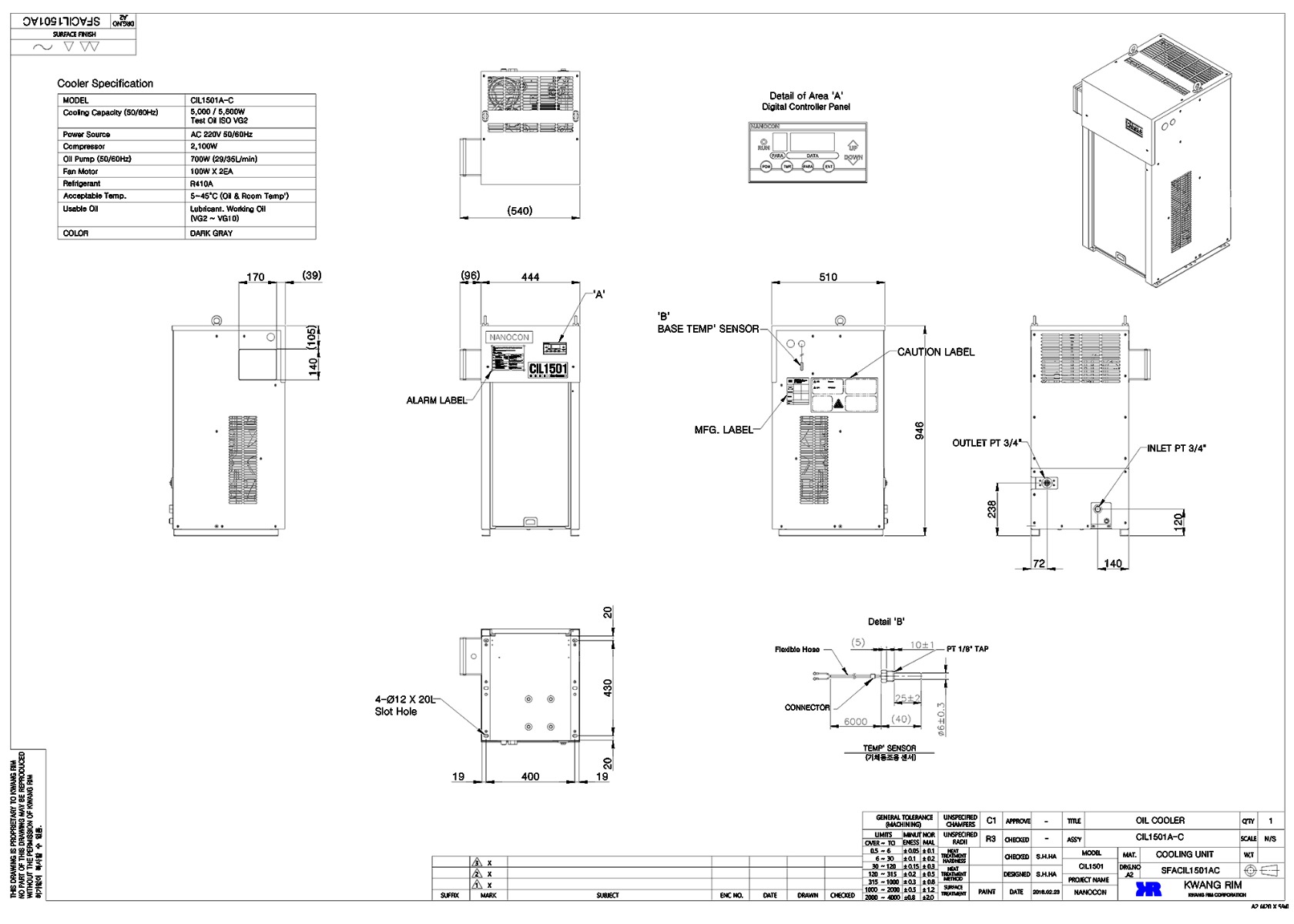

Chiller Dimension Drawings
