Part : Coolant Pump

Model : ACP-1800BMF

Manufacturer : A-Ryung

Delivery & Return

Product Description

ACP-BMF is multi-stage centnifugal pump & uesd large quantity of oil flow for large machine with high precision & efficiency.

It is proper to make working parts surface slick by flowing down & washing chips by cooling fluid.

This pump is designed not to teansfer the temperature of motor directly to mump(pump & motor designed separately). So the oil temperatuer can keep constantly.

Product Specifications

Specifications
Type1800BMF
PumpDischarge volume (/min)300400
Head10 m
In-let & Out-Let2" PS
Immersion Depth242 mm
MotorOut-put1800 W
FrequencyVoltage50 Hz60 Hz
Voltage200V/380V/415V220V/380V/440V
Current6.6A/3.8A/3.5A7.2A/4.2A/4.0A
Weight45 kg

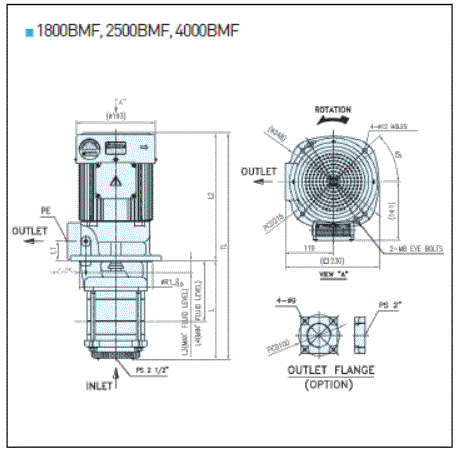

External Dimensions

ACP-1800BMF

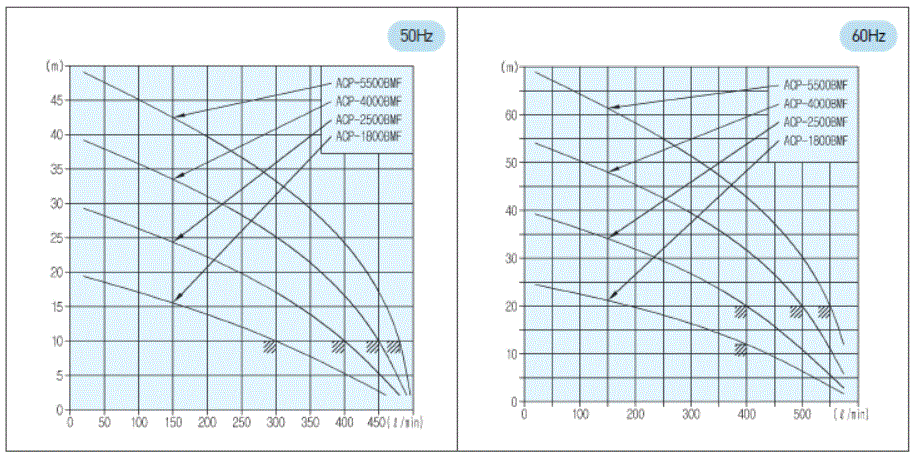

Performance Range

ACP-1800BMF

The liquid should be filled the up and down limit line indicated the pump body side. But that the maximum level of liquid keeps below 20mm from tank top is better. If the liquid is over the maximum limit line, it happens the liquid dispersion. Reversely, the minimum liquid causes noise by air mixing or low performance of sucking particles from under tank. The discharging volume is sharply changeable by the viscosity. If the viscosity is high, the motor increases heat. So the viscosity of cutting oil keeps under 32 cSt. This pump is low head so that it can't discharge due to pipe resistance when the check valve is installed.

TYPELL1L2L3L4TLR1PE
1800BMF2424731430150556180PS2 "
