Availability: Shipping directly from South korea. Import duties are included.
Estimated Delivery: 21 Days
SKU
ACP1100HMFS30

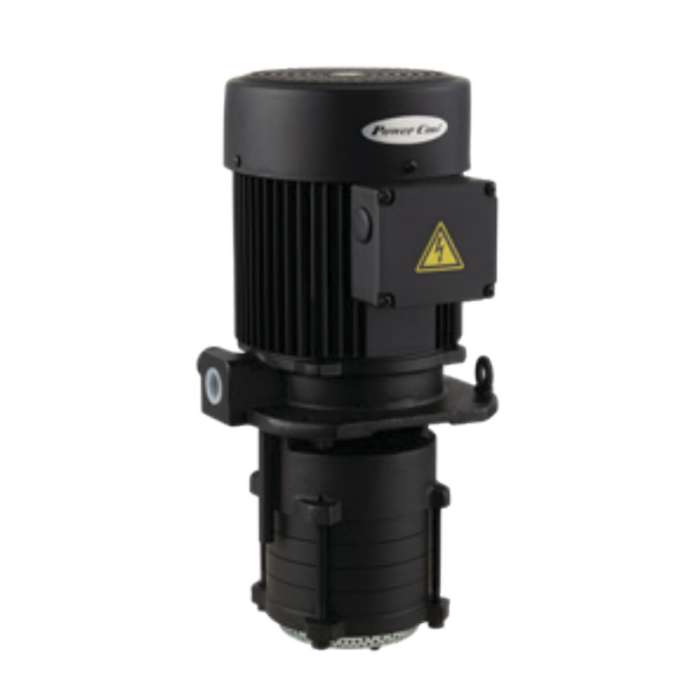

Part : Coolant Pump

Model : ACP-1100HMFS 30

Manufacturer : A-Ryung

Delivery & Return

Product Description

ACP-HMFS series pumps are high head multi-staged high pump &used large quantity of ol flow machines with high precision & efficiency.

This pump is designed not to transfer the temperature of the motor directly to the pump, so the oil temperature can stay constant.

Product Specifications

Specifications
TypeACP-1100HMFS 30
PumpHead202030
Discharge volume (/min)30 m
In-let & Out-Let3/4 "
Immersion depth(mm)170
MotorOut-put1100W
FrequencyVoltage50 Hz60 Hz
Voltage200V/380V/415V220V/380V/440V
Current4.4A/2.5A/2.3A4.8A/2.8A/2.6A
Weight25 kg

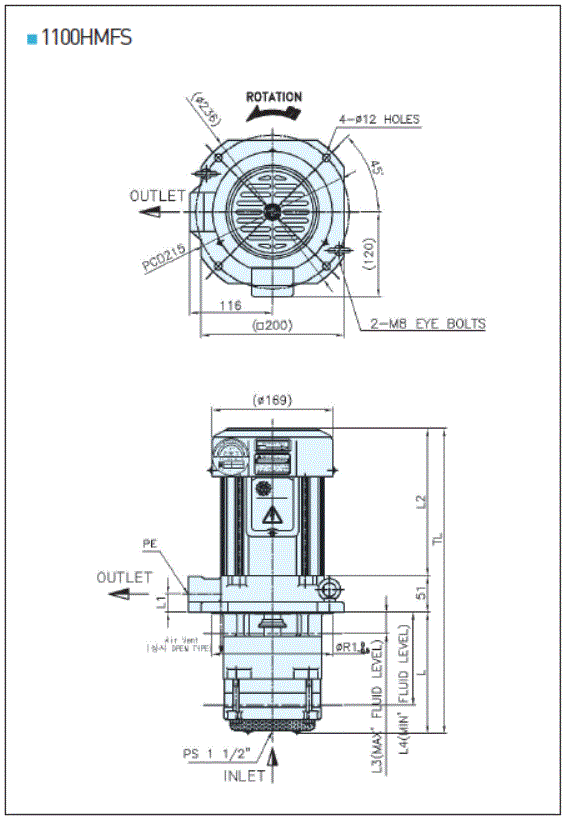

External Dimensions

ACP-1100HMFS 30

Performance Range

A-Ryung Coolant Pump ACP-4000HMFS 115

The liquid should be filled the up and down limit line indicated the pump body side. But that the maximum level of liquid keeps below 20mm from tank top is better. If the liquid is over the maximum limit line, it happens the liquid dispersion. Reversely, the minimum liquid causes noise by air mixing or low performance of sucking particles from under tank. The discharging volume is sharply changeable by the viscosity. If the viscosity is high, the motor increases heat. So the viscosity of cutting oil keeps under 32 cSt. This pump is low head so that it can't discharge due to pipe resistance when the check valve is installed.

TYPE LL1 L2L3T4TLØR1PE
1100HMFS 301702521230130433170PS 3/4"
More Information
Product NameA-Ryung Coolant Pump ACP-1100HMFS 30
AvailabilityShipping directly from South korea. Import duties are included.
Estimated Delivery21 Days
Shipping For Product600.000000
Calculate ShippingPer Product Quantity
Enable Shipping Per ProductYes
BrandA-Ryung
Enable Request a QuoteYes
