Part : Coolant Pump

Model : ACP-401A

Manufacturer : A-Ryung

Delivery & Return

Product Description

This type is a self-suction pump, and it has little restriction to install in small space. This type is used general machine.

For the first operation of pump, the oil should be completely filled in the self suction room.

Do not operate the pump after too long idle time because it causes mechanical seal damage. (idle time; within 30 seconds)

Product Specifications

Specifications
Type401A
PumpDischarge volume (/min)125170
Head5 m
In-let & Out-Let1 "
MotorOut-put400 W
FrequencyVoltage50 Hz60 Hz
Voltage200V/380V/415V220V/380V/440V
Current2.6A/1.5A/1.4A2.7A/1.6A/1.5A
Weight14.5 kg

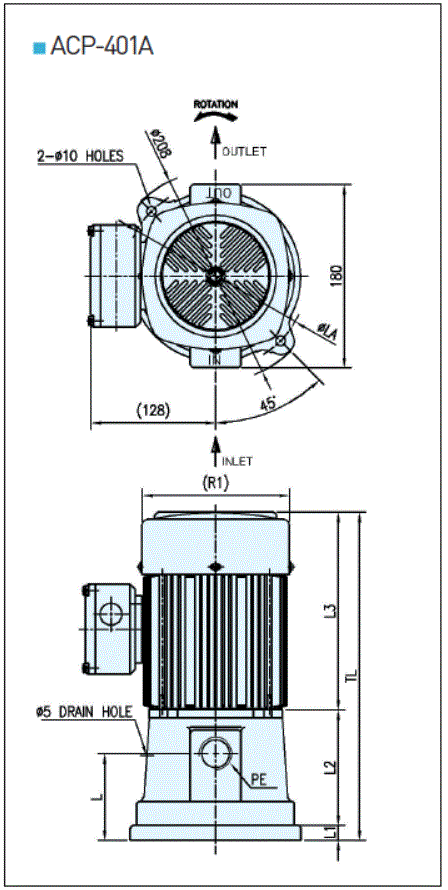

External Dimensions

ACP-401A.

Performance Range

ACP-61A

The liquid should be filled the up and down limit line indicated the pump body side. But that the maximum level of liquid keeps below 20mm from tank top is better. If the liquid is over the maximum limit line, it happens the liquid dispersion. Reversely, the minimum liquid causes noise by air mixing or low performance of sucking particles from under tank. The discharging volume is sharply changeable by the viscosity. If the viscosity is high, the motor increases heat. So the viscosity of cutting oil keeps under 32 cSt. This pump is low head so that it can't discharge due to pipe resistance when the check valve is installed.

TYPE LL1 L2L3TL ØR1ØLAØLBPE
401A8515113194322145180[180]-2-PS 3/8"
