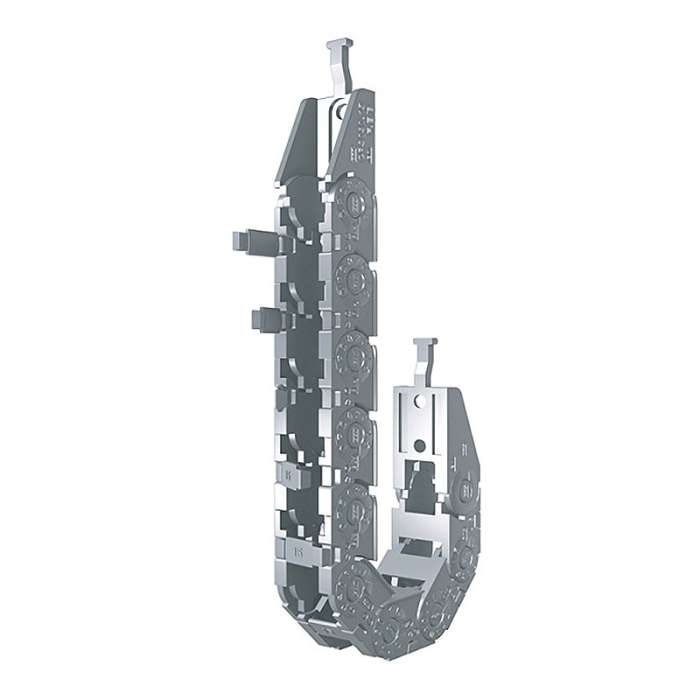

Part : Cable Chain

Chain Material : CPS-amide with glass fiber reinforced , UL 94-HB

Inside Width : 15

Bending Radius : R48

Bracket Type : B2

Tirewrap bracket type

Length : 750L

Manufacturer Part Number : CPS03015R48

Manufacturer : CP System

Delivery & Return

Product Description

• Chain Material: CPS-amide with glass fiber reinforced, UL94-HB

• Low Noise: 40 dB (DIN EN 61672-1)

• Speed: 10m / sec

• Temperature: -30°C ~ +130°C

• Other installation Length:
   Vertical curve above= max 1.5m
   Vertical curve below= max 10m
   Side Mounted, Unsupported= max 0.6m

• Applications: Gantry robot, Machining center, Textile machine, Welding machine, Feeder unit, Assembly loader, Wood work machine, Fabric machine.


Calculation of the chain length

CP System Cable Chain CPS030.15.R48B2T-780L

Product Specifications

Chain Type Bending Radius (R)Weight kg/mBending radius (R)Lp (Loop Length)Lf (Loof Projection)H (Moving Height)
CPS 030.1548mm0.3848271119121

CP System Cable Chain CPS030.15.R48B2T-780L

CP System Cable Chain CPS030.15.R48B2T-780L
