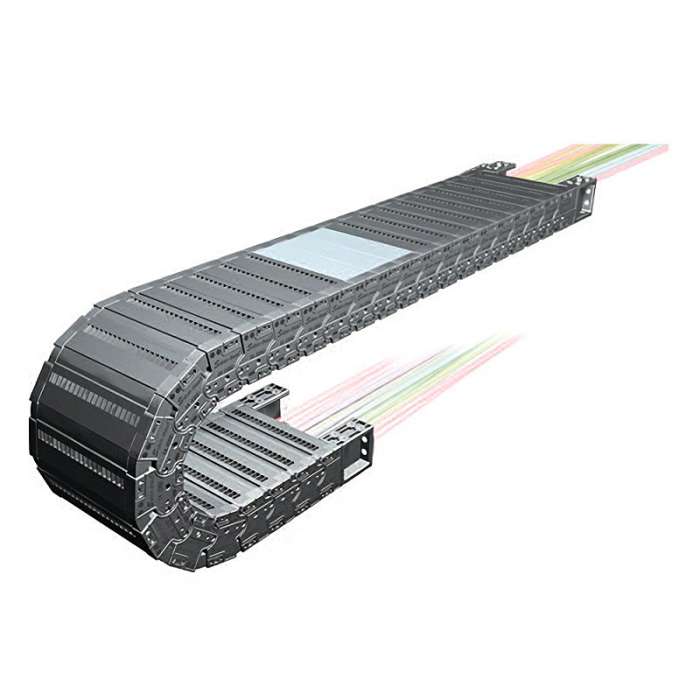

Part : Sabin Chain
Chain Materia l: CPS-amide , UL 94-HB
Enclosed Type
Inside Width : 200
Bending Radius : R135

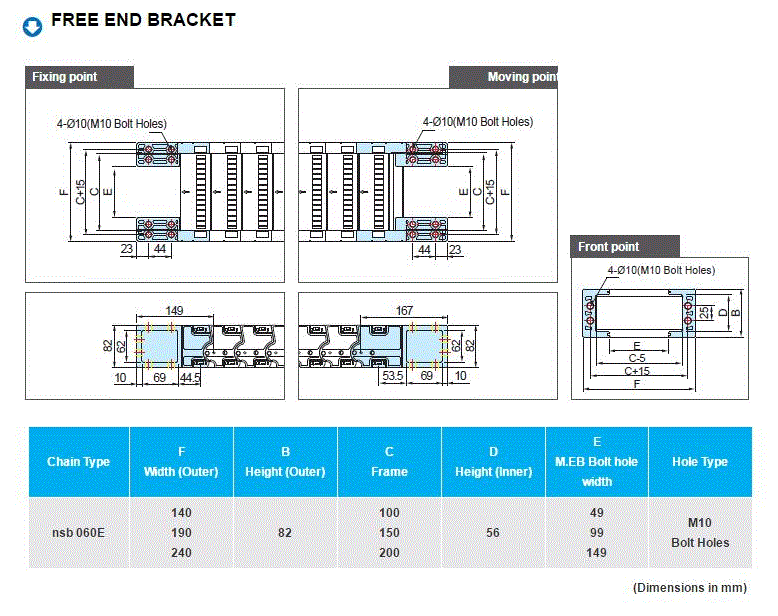

Bracket Type : Free End Bracket
Length : 1380L
Links : 23 Links
Manufacturer Part Number : M43041516
Manufacturer : CP System
Categories:
Product Description
• Chain Material: CPS-amide with glass fiber reinforced, UL94-HB
• Speed: 5m / sec
• Temperature: -30°C ~ +130°C
• Acceleration: 15m/2s
• Other installation Length:
Vertical curve above= max 2.0m ~ 6.0m
Vertical curve below= max 40m ~ 120m
Side Mounted, Unsupported=1.0m ~ 3.0m
• Applications: Sabin Chain E can be found on car manufacturer's welding line, robot carriages and press lines and on any machine where excess material can damage your inserted cables.
Calculation of the chain length

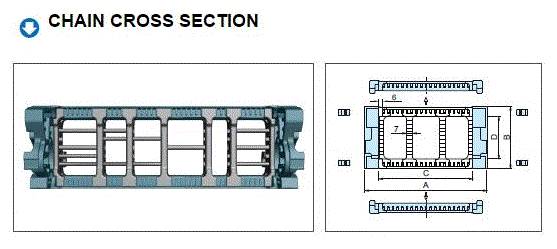

Product Specifications
| Chain Type | A | B | C | D | Weight kg/m |
| Width (Outer) | Height (Outer) | Frame | Height (Inner) | ||
| nsb 060E | 190 | 82 | 150 | 56 | 4.86 |

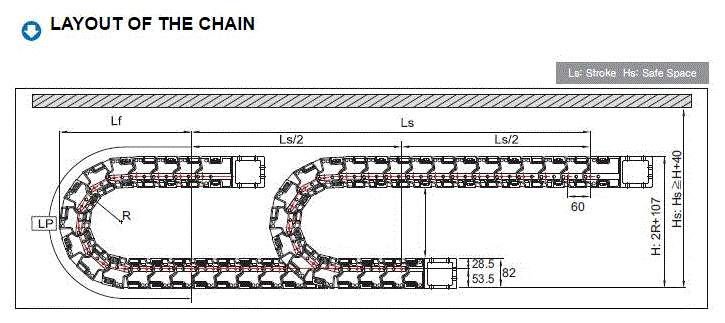

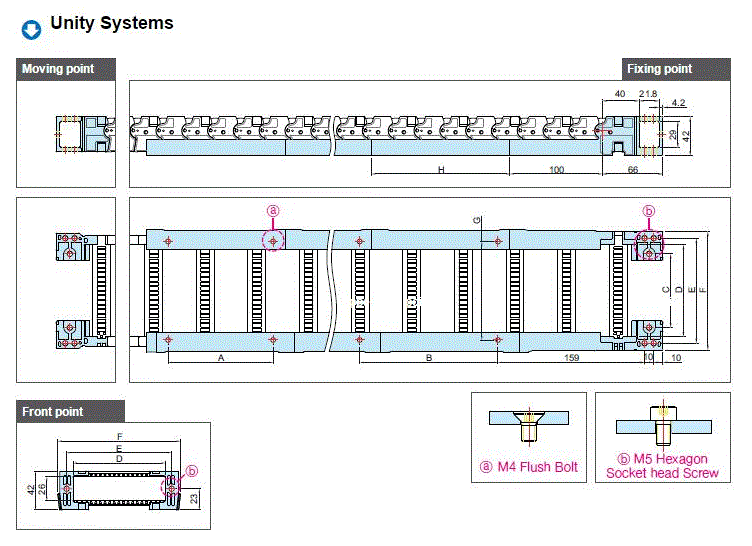

| Bending radius (R) | Lp (Loop Length) | LP (Loof Projection) | H (Moving Height) |
| 135 | 885 | 399 | 377 |
| Chain Type | C | D | E | F | G |
| FEB fix hole(inner) | Frame | FEB hole width | FEB width | GC hole width | |
| nsb 060E | 175 | 200 | 215 | 264 | 219 |
| Shipping For Product | 0.000000 |
|---|---|
| Calculate Shipping | Per Product Quantity |
| Enable Shipping Per Product | No |
| Brand | ASM enterprise |
| Enable Request a Quote | No |
