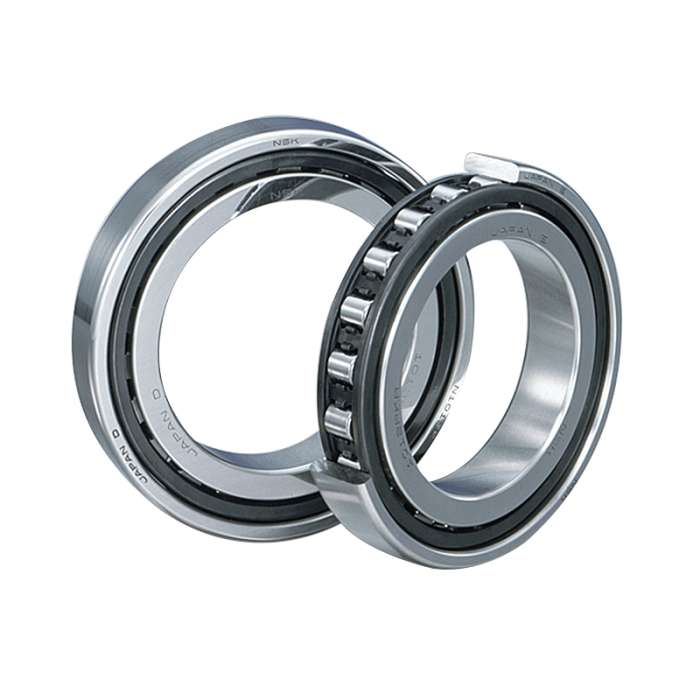

Parts : Cylindrical Roller Bearing
Part Number : N1009BTKRCC0P4 (593N1009BT01NS)
Dimensions : 45 mm x 75 mm x 16 mm
Manufacturer : NSK
Categories:
Product Description
Bearings to support the rear portion of the head spindle in machining centers and NC lathes are exposed to the belt tension and transmission gear reaction.
Accordingly. double-row cylindrical roller bearings with large load capacity are used.
The number of applications are increasing for a drive system with a motor directly coupled or a motor built-in system with a motor arranged directly inside the spindle to meet the demand for faster spindle speeds.
In this case,the single-row cylindrical roller bearing has come to be increasingly used because it can reduce the load acting on the rear support bearing.
Product Specifications

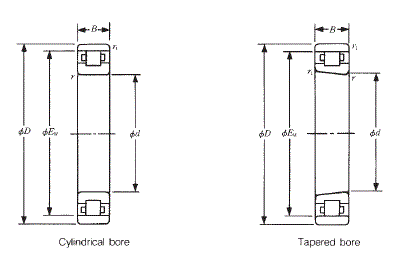

| Dimension Specifications | ||
| Boundary Dimensions | d | 45 mm |
| D | 75 mm | |
| B | 16 mm | |
| r (min) | 1 mm | |
| r1 (min) | 0.6 mm | |
| Basic Load Ratings | Ew | 67.5 |
| Cr | 30,000 N | |
| Car | 34,500 N | |
| Cr | 3,100 kgf | |
| Car | 3,500 kgf | |
