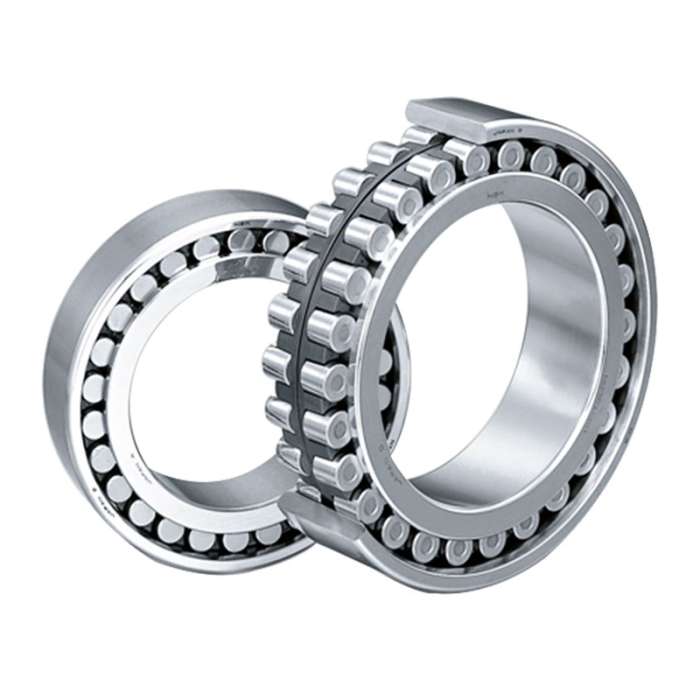

Parts : Roller Bearing
Part Number : NN3012TBCC1P4 (593NN3012001NS)
Dimensions : 60 mm x 95 mm x 16 mm
Manufacturer : NSK
Categories:
Product Description
Bearings to support the rear portion of the head spindle in machining centers and NC lathes are exposed to the belt tension and transmission gear reaction.
Accordingly. double-row cylindrical roller bearings with large load capacity are used.
The number of applications are increasing for a drive system with a motor directly coupled or a motor built-in system with a motor arranged directly inside the spindle to meet the demand for faster spindle speeds.
In this case, the single-row cylindrical roller bearing has come to be increasingly used because it can reduce the load acting on the rear support bearing.
Product Specifications
| Boundary Dimension | |
| d | 60 mm |
| D | 95 mm |
| B | 16 mm |
| r (min) | 1 mm |
| r1 (min) | 1.1 mm |
| Shipping For Product | 0.000000 |
|---|---|
| Calculate Shipping | Per Product Quantity |
| Enable Shipping Per Product | No |
| Brand | ASM enterprise |
| Enable Request a Quote | No |
Please leave a question about the products, our engineer will reply back to you.
