Part : Cam Follower
Part Number : CF10
Manufacturer : THK Global
Categories:
Product Description

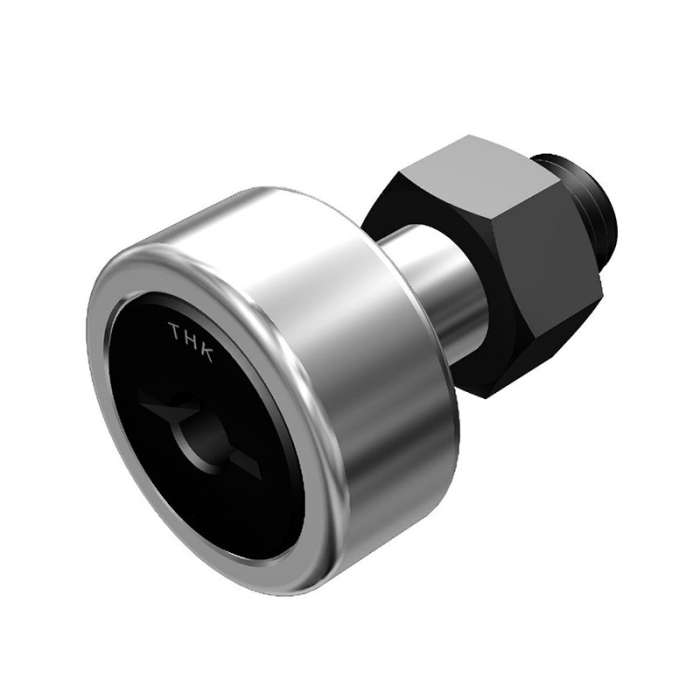

This model is a low-price Cam Follower with a driver groove or hexagon socket in the stud head.
The all-stainless steel type (symbol M) is optimal for clean room applications since it does not develop rust from external atmosphere and generates little dust.
Product Specifications
| Specifications | |
| Stud Diameter d | 10 |
| Model No. | CF10 |
| Outer Diameter D | 22 |
| Outer Ring Width C | 12 |
| Threaded G | M10 x 1.25 |
| G1 | 12 |
| B | 13 |
| Overall Length B1 | 36 |
| B2 | 23 |
| C1 | 0.6 |
| D2 | 4 |
| r smin | 0.3 |
| Shoulder Height Min. | 15 |

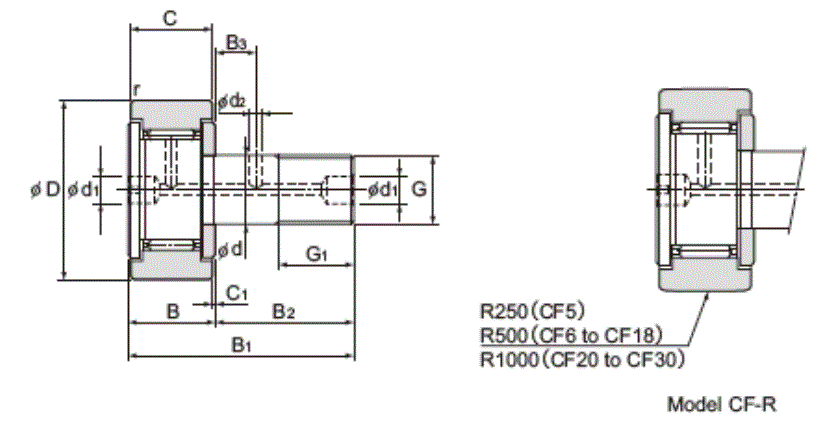

Product Drawing
Stud diameter d | Model No. | Main dimensions | ||||||||||
Outer diameter D | Outer ring width C | Threaded G | G 1 | B | Overall length B1 | B2 | C1 | D2 | r smin | Shoulder height (Min.) | ||
| 10 | CF10 | 22 | 12 | M10 X 1.25 | 12 | 13 | 36 | 23 | 0.6 | 4 | 0.3 | 15 |
